Bi-Metal Bushings & Sturdi Sleeve

Bi-Metal Bushings & Sturdi Sleeves

Bi-Metal bushing is backed with high quality low carbon steel with tin-lead- bronze alloy (CuSn10Pb10) sintered on its surface. To effectively decrease abrasion, its alloy surface can be machined with ball shaped oil sockets for easier oil storage. When necessary, it could be plated copper or tin on the steel back. It can be applied to conditions of mediate load with mediate or high running velocity and conditions with enormous impact load. In mechanical applications, KDB301 is used to make wrapped bushes, thrust washer and bushes on connecting rod level of gas engine.

It has high fatigue strength, load capacity and impact strength. The product is applied to track roller, air compressor, especially replaced the Centrifugal casting bimetal bushing for the track roller application. The alloy thickness is uniform when compared with the centrifugal casting bimetal bushing. This in turn saves a lot of material by reducing the product cost while increasing the performance.

 Send Enquiry

Introduction:

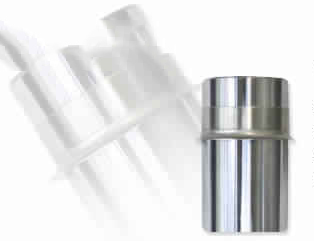

Quickly and economically repair grooved and worn shafts for rotary oil seals.Fitting new seals on already worn shafts can result in repeated replacement of seals. Grooving on shafts can require expensive re-matching or even result in the shaft having to be replaced. Repair sleeves are simply pushed over the worn running surface. No special equipment is required, a standard depth installation tool is also supplied with the sleeve.

Card image

KEY BENEFITS

  1. Cost effective and alternative to repairing or replaced damging shaft.
  2. Easy to install and reduce down equipment time.
  3. Ultra thin,no need to change seal size.
  4. Extremely durable,corrosion free sealing surface.
  5. Extends seals life.
Card image

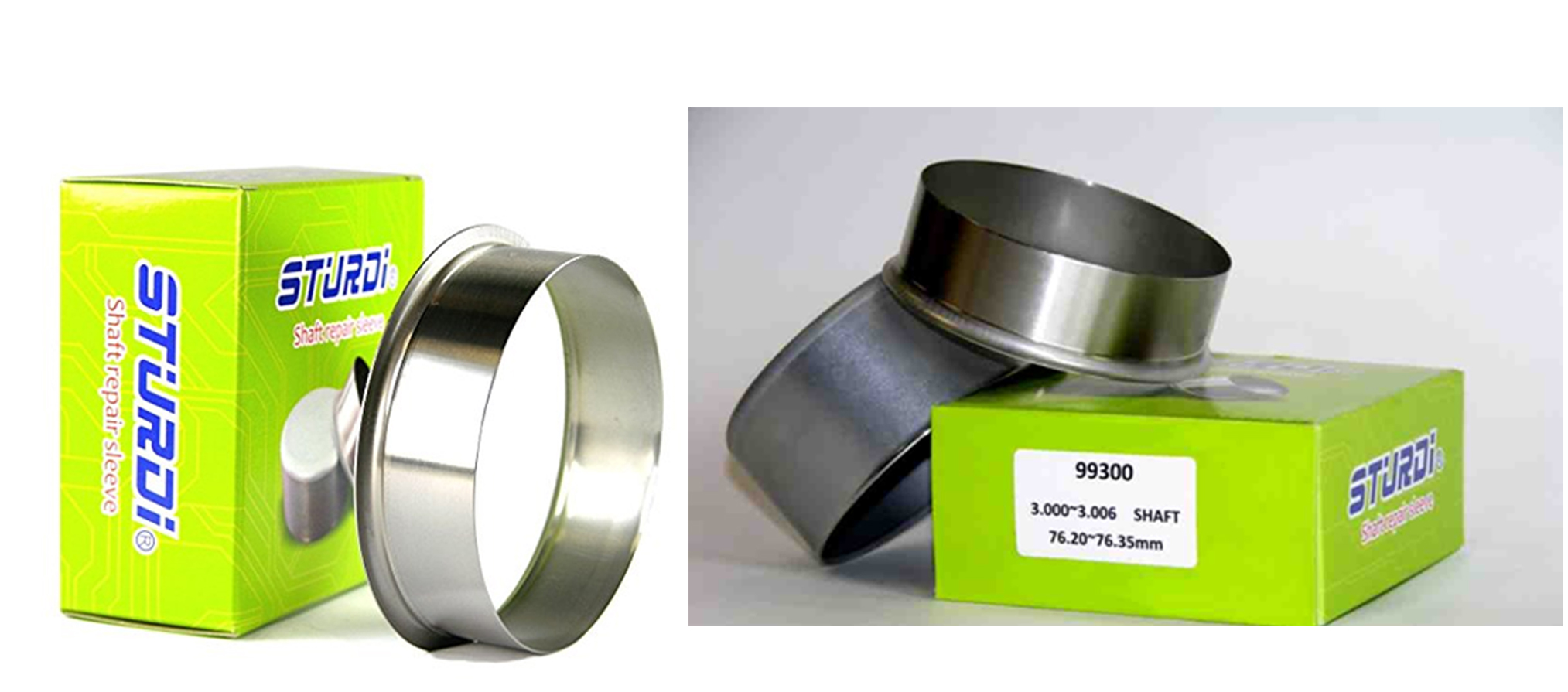

STRUDE-SLEEVE PRODUCT SPECIFICATIONS:

STRUDI STANDARD SLEEVE
Material Stainless Steel SAE/ANSI 304 Card image
Properties Good chemical and corrosion resistance
Hardness Over 2020HV (95 HRB)
Wall thickness 0.28mm 0/-0.05
Surface roughness Ra 0.2~0.50μm
Lead specifications Zero+/-0.05 degree
STRUDI STANDARD SLEEVE:
Material Stainless Steel 304 Card image
Coating "HEEF-25"#1 Hard chrome plated
Properties Extremely durable,corrosion free sealing surface
Hardness 800~1100 HV(65~72 HRC)
Wall thickness 0.28mm 0/-0.5
Surface roughness Ra 0.20~0.50μm
Lead specifications Zero+/-0.05 degree
Applications With seal made of Viton (FKM/FPM) & filled PTEE/heavy duty machines and equipments
Note The HEEF-25 process lays down smooth bright,uniform chromium deposited on parts of all shapes and sizes
STRUDI SLEEVE ULTIMATE:
Material Stainless Steel 304 Card image
Coating Titanium-plated
Properties Effective in high dust and grit environments good absorsion
Hardness 800~85 HRC
Wall thickness 0.28mm 0/-0.5
Surface roughness Ra 0.20~0.50μm
Lead specifications Zero+/-0.05 degree
Applications With seal made of Viton (FKM/FPM) & filled PTEE/heavy duty machines and equipments
